MARINE ALTERNATORS
WE DON'T MAKE THE MOST ALTERNATORS:
ONLY THE BEST ONES Wagner Products P.O. Box 221001 / St. Louis, MO 63122 / 314-966-4444

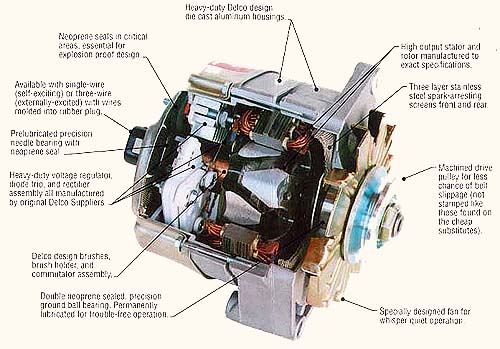

Marine Alternator from Wagner Products
Click on the picture for a closer view. (75KB) Use your back button to return here.

HIGH OUTPUT REPLACEMENT ALTERNATORS
MODEL NUMBER, DESCRIPTION AND SUGGESTED LIST PRICES
MODEL SE-63
68 AMPS
Single wire connection fits Mercruiser and many other applications. Equipped with fan and drive pulley. 		MODEL EE-63
68 AMPS
Replaces Mando, Motorola and original equipment Delco. Use same electrical connections and mounting method. Equipped with fan and drive pulley. 		MODEL SE-93
94 AMPS
Single wire connection fits Mercruiser and many other applications. Equipped with fan and drive pulley. 		MODEL EE-93
94 AMPS
Replaces Mando, Mororola and original equipment Delco. Use same electrical connections and mounting method. Equipped with fan and drive pulley.
Replaces Mercruiser 69729 Replaces Mercruiser 78477, 92497A3, 78403A2
OMC 983424, 982364, 983836, 986008, 985466
Pleasurecraft RA097002, RA097003, RA097006		 Replaces Mercruiser 69729 Replaces Mercruiser 78477, 92497A3, 78403A2
OMC 983424, 982364, 983836, 986008, 985466
Pleasurecraft RA097002, RA097003, RA097006
$298.50* $298.50* $398.50* $398.50*

MODEL NUMBER AC-2 Adapter cables with bullet connectors and splices for use in coverting wiring harness with ring terminals to quick connectors. SUGGESTED LIST PRICE: $9.95*

*Prices Effective 1 March, 1997, subject to change without notice. See order page for freight and C.O.D. charges.

ALTERNATOR MOUNTING AND DIMENSIONS
ALTERNATOR MOUNTING AND DIMENSIONS
For MORE INFORMATION, click here.

The Model DC-60 Alternator Replacement Kit
A simple bolt-on solution to 470 Series Mercruiser charging problems
PROBLEM: Burnout
The Original Equipment uses a stator that puts out continuous current and heat, so its water-cooled voltage regulator is subject to burnout. And even with an expensive replacement, the problem won't stay fixed.

View Manual

 SOLUTION: Model DC-60
This new conversion kit utilizes the alternator found on most other Mercruiser stern drives, which charges only when current is needed, producing less heat and less chance of burnout.

BIG PLUS! Efficiency!
The new system is more energy-efficient, resulting in more miles per gallon and higher top-end speed.

SUGGESTED LIST PRICE Only $600.00
Includes new 68 AMP. Delco one-wire alternator

Call for more information.
Place an order today!
